Custom Control Cable

Saho Group will customize the perfect Bowden control cable assembly for your application.

We have more than 20 years of industry experience, and more than a dozen experienced professional engineering designers do custom services for you.

You can choose the style you want for each component of the cable. If there is no style you want, you can tell us your needs, and we can customize the design for you.

As shown in FIG, Bowden cable ordinary structure include 4 parts:

  • Conduit â‘¢
  • Conduit Fittings â‘¡ & â‘£
  • Wire Rope ⑤
  • Wire Terminals â‘  & â‘¥

You can choose the style you need according to the following 4 steps.

Step1: Choose Conduit

Click the picture below to download the detailed specification document, then choose the conduit type you want.

If you don’t found the suitable one, please kindly let us know and we can do according to your request.

Step2: Choose Conduit Fittings

After you confirmed conduit diameter & structure, then you will choose the suitable conduit fitting you need. Below is our current specifications. If you don’t found the suitable one, please kindly let us know and we can do according to your request.

Metal Material

Below are the metal material conduit fittings.

Plastic Material

Below are the plastic material conduit fittings.

Step3: Choose Wire Rope

There are two main types of steel rope options: Coated and Uncoated. You can download the following 2 documents for selection.

Step4: Choose Wire Terminals

Wire Terminals are an important part of the Bowden control cables. It can have many shapes to meet your different application needs. You can choose our existing shapes or customize it.

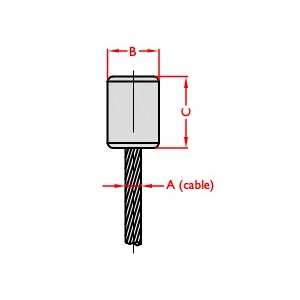

Diecasting Ends

The main material of die-casting ends is: zinc alloy.

Our common diecasting wire terminals have these types: Barrel, Nipple, Ball, Z Shape, Loop, T Shape, Q Shape.

You can click the picture below to download the detailed specification document, then choose the type you want.

Rivet Ends

The main material of rivet ends is: iron, stainless steel, copper, aluminum.

Our regular rivet end fittings have these types: Screw Rod, Nipple, Ball, Ring, Loop. Click blow images to learn more specifications.

Other Type Ends

Below are the other ends for control cable wire terminals.

Step5: Submit Requirements

Normally, our MOQ is 500pcs, if you have special needs, please contact us.

Click or drag files to this area to upload. You can upload up to 5 files.
Allowed file formats: .jpg, .png, .pdf, .doc, .docx, .xls, .xlsx

Design Your Control Cables
